Acrylic Rotameter

• Accuracy
• 2%

• Application
• Water

• Material
• Ss304 Flange

• Measuring Range
• 100-50000 LPH

• Mounting Type
• Online

• Product Type
• Manual

• Temperature
• 60

• Equipment Type

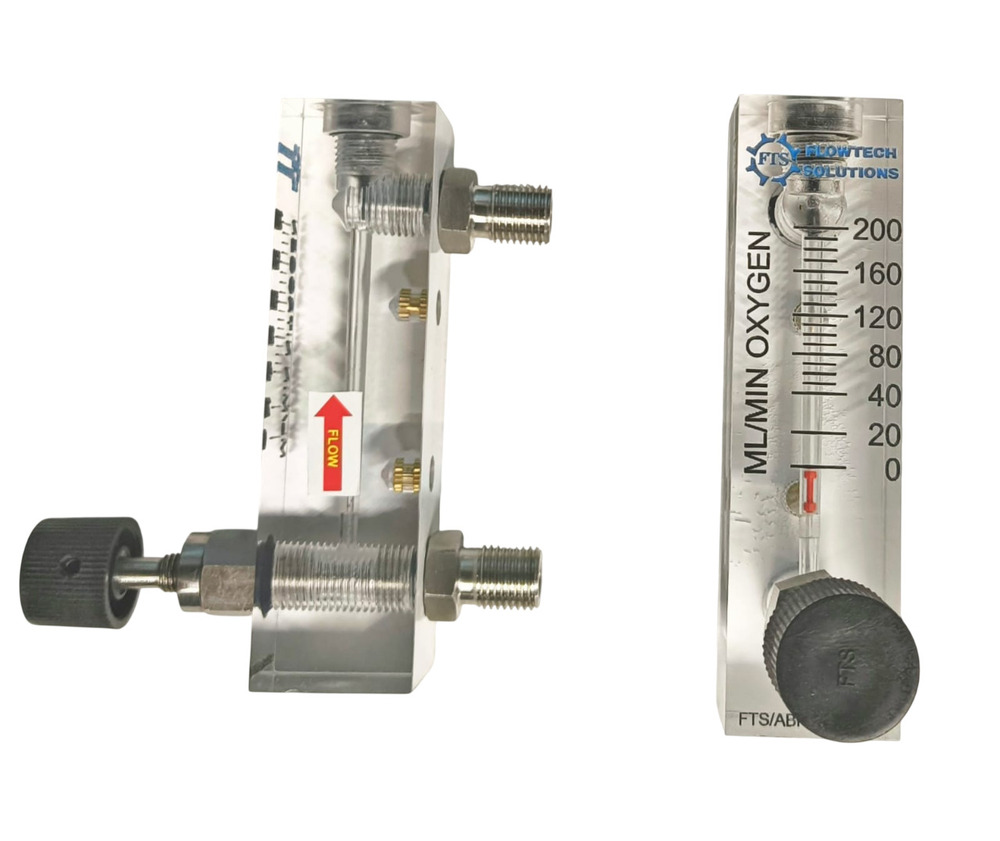

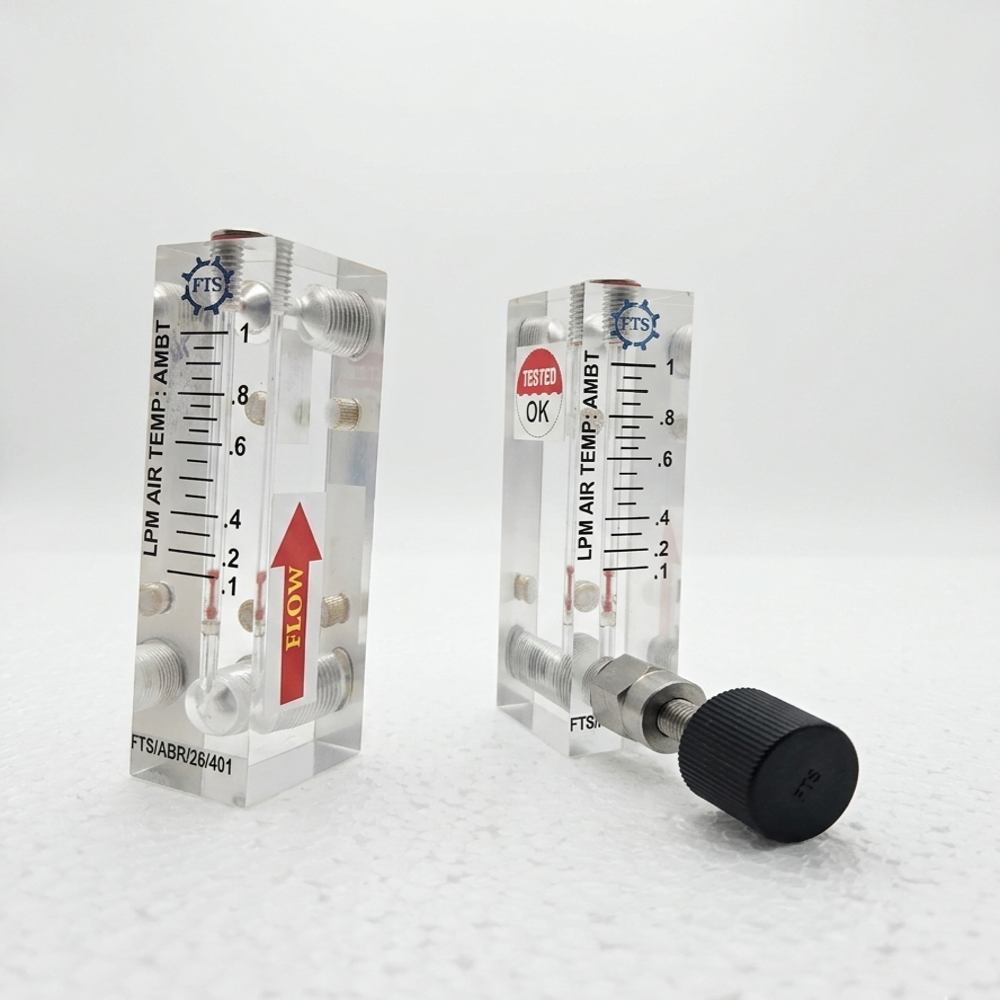

• Acrylic Body Low Flow Rotameter

• Accuracy
• 2% of FSD

• Application
• Measurement of low flow rates of liquids and gases

• Automation Grade
• Manual

• Capacity
• Low Flow (customizable up to 1000 LPH depending on model)

• Control Mode
• Manual

• Display Type
• Direct-Reading Graduated Scale

• Features
• Corrosion resistant, clear visibility, low maintenance, compact design

• Gas Pressure
• Max 10 kg/cm2

• Hardness
• Acrylic, shore hardness 80-87

• Humidity
• Up to 95% RH, Non-condensing

• Machine Weight
• Approx. 250-400 g

• Max Height
• Variable (typically 150-300 mm depending on model)

• Measuring Range
• 5 to 4000 LPH (varies by model)

• Mounting Type
• Panel/Inline, Vertical Mounting

• Port Size
• 1/4 BSP (Others Available)

• Resolution
• Fine, readable scale markings

• Response Time
• Instantaneous

• Temperature
• 0C to 55C

• Usage
• Industrial, Laboratory, Water Treatment, Gas Distribution

• Equipment Type

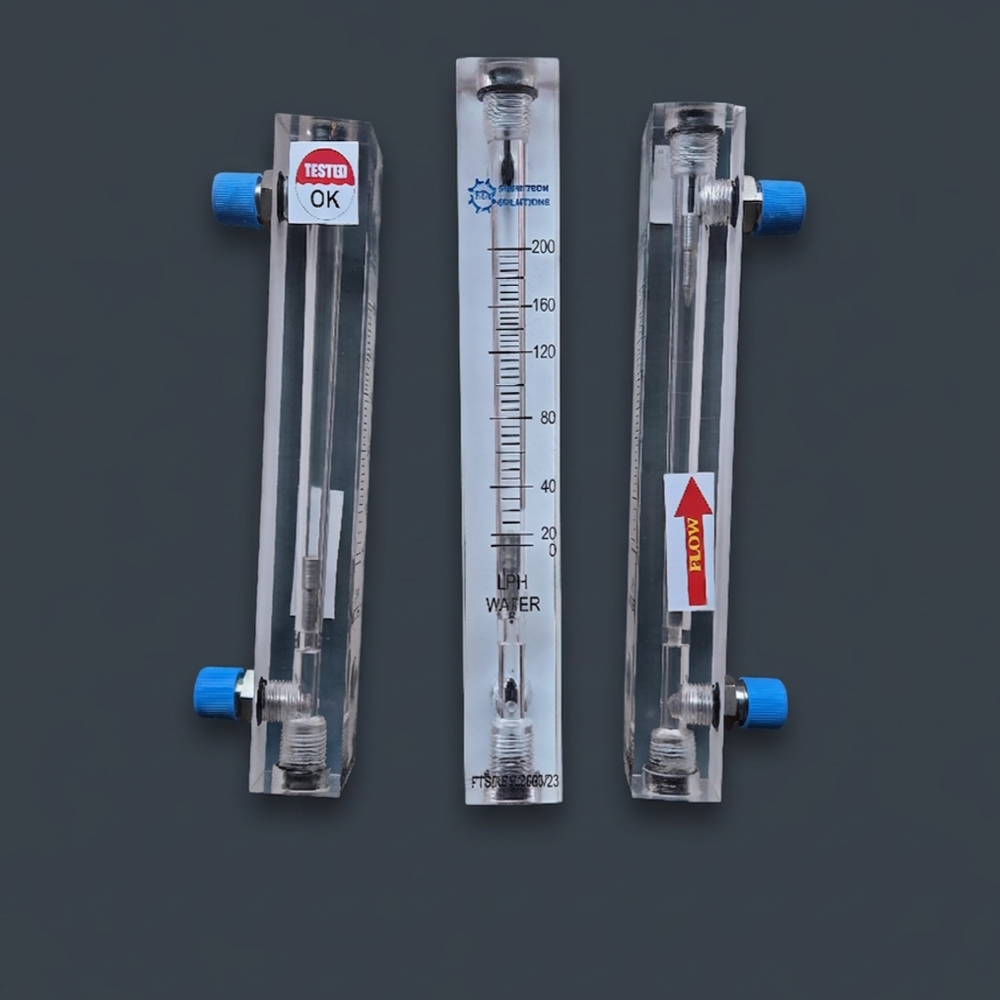

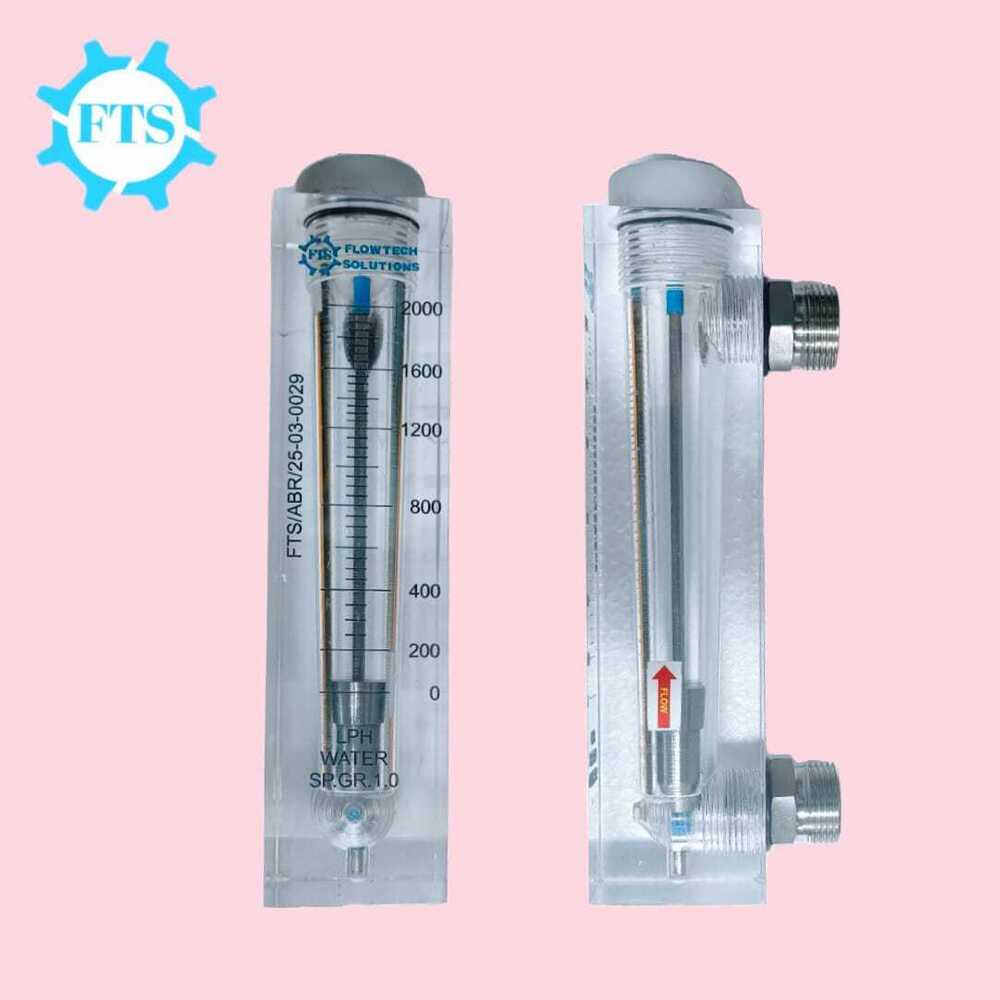

• Acrylic Body Panel Mounted Type Rotameter

• Accuracy
• 2% of F.S.R.

• Application
• Flow measurement of liquids and gases in pipes

• Automation Grade
• Manual

• Capacity
• 10 to 40,000 LPH (water at 20C)

• Control Mode
• Manual

• Display Type
• Clear Acrylic Tube with scale

• Features
• Clear acrylic body, corrosion resistant, easy installation, high visibility scale

• Gas Pressure
• Up to 10 kg/cm2

• Hardness
• Acrylic: 80-90 Rockwell M

• Humidity
• Up to 95% RH (Non-condensing)

• Interface Type
• None (Mechanical Indicator)

• Machine Weight
• 2.5 kg to 5 kg (depending on model)

• Max Height
• 350 mm (model dependent)

• Measuring Range
• As per model, up to 40,000 LPH (liquid) or 400 Nm3/hr (gas)

• Mounting Type
• Panel mounted installation

• Port Size
• 1/2 to 2" BSP ( CUSTOMISED)

• Power Supply
• Not Required (mechanical operation)

• Resolution
• Graduated Scale (Direct Reading)

• Response Time
• Rapid, depends on flow change

• Temperature
• Up to 70C

• Usage
• Industrial, laboratory, water treatment, gas flow measurement

• Equipment Type

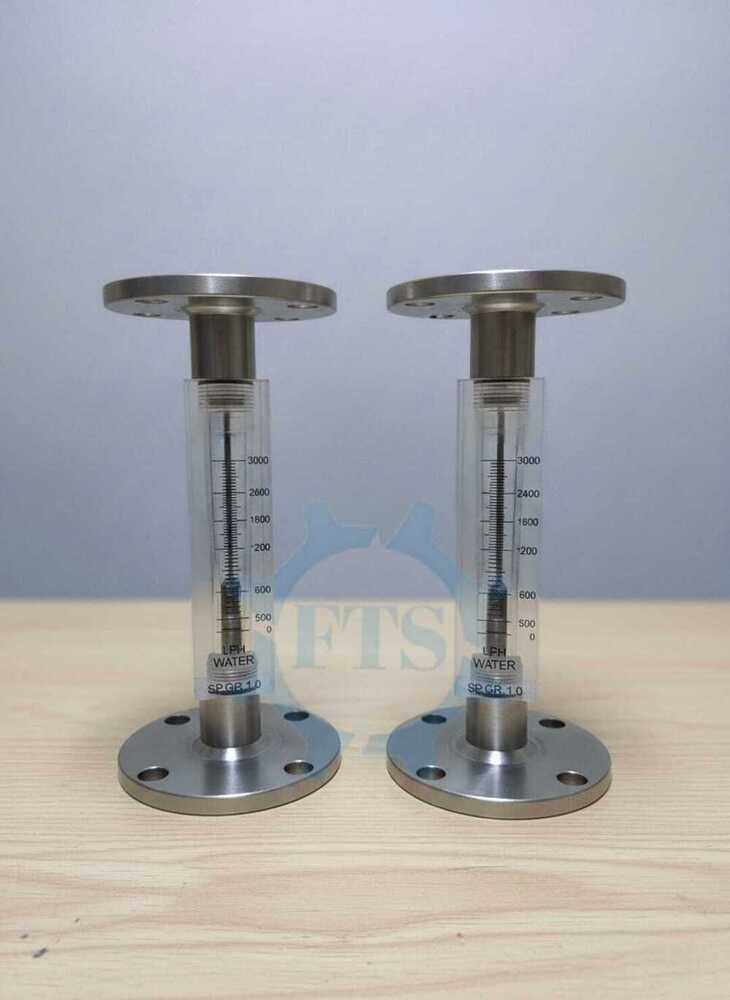

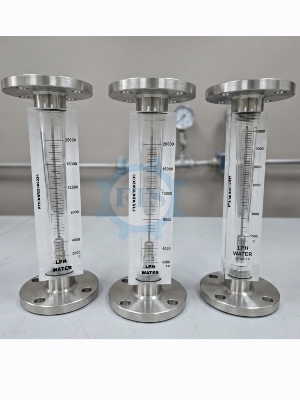

• Acrylic Body Flange Type Rotameter

• Accuracy
• 2% FSD (Full Scale Deflection)

• Application
• Measurement of liquid and gas flow in pipelines

• Automation Grade
• Manual

• Capacity
• 10 to 40,000 LPH (or as per model)

• Control Mode
• Manual

• Display Type
• Direct Reading Graduated Scale

• Features
• Corrosion-resistant, Clear Visibility, Lightweight, Easy Installation

• Gas Pressure
• Up to 10 kg/cm2 (varies by model)

• Hardness
• Acrylic body: Shore D 80-85

• Humidity
• Upto 95% RH (Non-condensing)

• Interface Type
• None (Mechanical)

• Machine Weight
• 2-5 kg (approx., varies with range)

• Max Height
• 250 mm to 500 mm (depends on model)

• Measuring Range
• Customizable as per requirement

• Mounting Type
• Vertical Mounting / Flange Type

• Operating Voltage
• N/A (Mechanical)

• Port Size
• 1/2 inch to 4 inch (Customizable)

• Power Supply
• Not Required (Mechanical Instrument)

• Resolution
• Scale Marked on Body (mm or LPH/LPM)

• Response Time
• Immediate/Real-time

• Temperature
• 0C to 60C (Standard working)

• Usage
• Industrial Fluid Flow Measurement

• Equipment Type

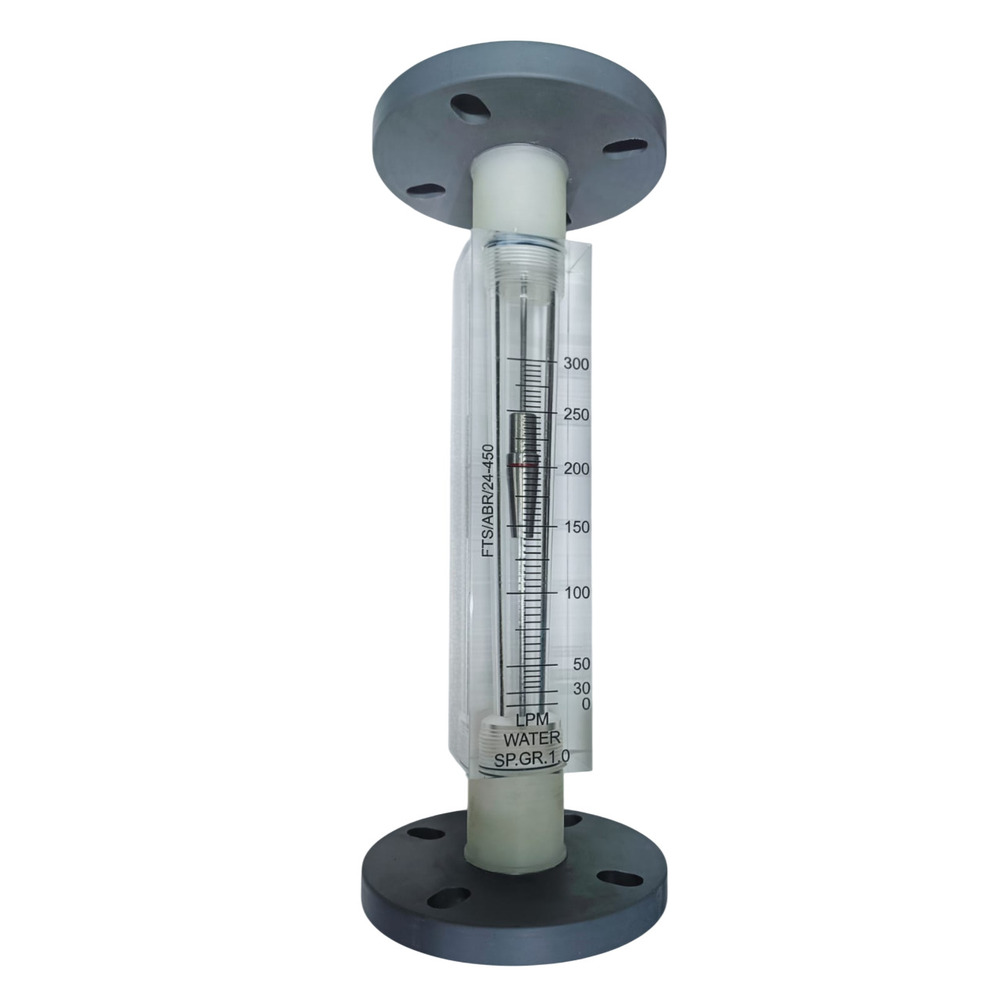

• Acrylic Body PP Flange Type Rotameter

• Accuracy
• 2% of FSD

• Application
• Industrial liquid and gas flow measurement

• Automation Grade
• Manual

• Control Mode
• Manual

• Display Type
• Direct indicating scale

• Features
• Rustproof acrylic body, chemical-resistant PP flanges, clear visibility, easy installation

• Gas Pressure
• Up to 5 kg/cm2

• Hardness
• Acrylic (Shore D 83)

• Humidity
• 0-100% RH (non-condensing)

• Interface Type
• Flanged

• Machine Weight
• 2.5 kg

• Max Height
• 350 mm

• Measuring Range
• 100 LPH to 50,000 LPH

• Mounting Type
• Vertical In-Line

• Port Size
• 15 mm to 100 mm

• Power Supply
• N/A (Mechanical)

• Resolution
• Fine float tracking

• Response Time
• Instantaneous

• Temperature
• 0C to 50C

• Usage
• Water, air, and chemical flow monitoring

• Equipment Type

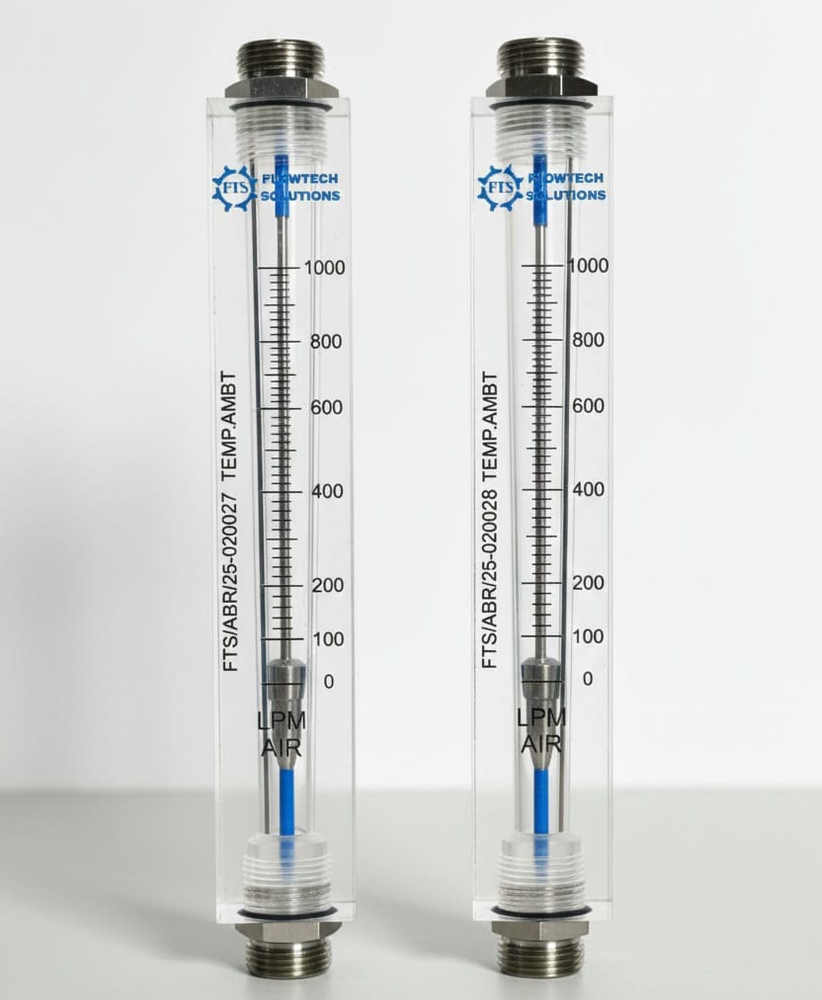

• Acrylic Body Rotameter

• Accuracy
• 2% of Full Scale (Standard)

• Application
• Measurement of liquid and gas flow in pipelines/laboratories/industrial process lines

• Automation Grade
• Manual

• Capacity
• Ranges available: 2.5 LPH to 10,000 LPH (for water); custom on request

• Control Mode
• Manual

• Display Type
• Analog (engraved scale on acrylic body)

• Features
• Clear, rugged acrylic body; corrosion resistance; available with flow control valve; float guide arrangement

• Gas Pressure
• Max Working Pressure: Up to 10 kg/cm2 (varies by model)

• Hardness
• Acrylic body: 80-90 Shore D

• Humidity
• Up to 95% RH (Non-condensing)

• Interface Type
• Mechanical

• Machine Weight
• Approximately 0.7 kg to 2.5 kg (varies with model and range)

• Max Height
• 250 mm to 400 mm (Depends upon capacity)

• Measuring Range
• Wide range depending on model-typically 2.5 to 10,000 LPH

• Mounting Type
• Panel/Inline/Wall Mounting (as per order)

• Port Size
• 1/4 to 2 BSP (Male or Female)

• Power Supply
• Not Required (Mechanical/Visual Readout)

• Resolution
• Varies with scale; typically high visibility direct reading

• Response Time
• Instantaneous

• Temperature
• 0C to 60C (Operating)

• Usage
• Laboratory, industrial and general process flow measurement

• Equipment Type
• Acrylic Body Flange Type Rotameter With Tie Rod

• Accuracy
• 2% FSD

• Application
• Flow measurement of liquids and gases

• Automation Grade
• Manual

• Capacity
• Variable, as per model (e.g., 100 to 60,000 LPH water)

• Control Mode
• Manual

• Display Type
• Clear Acrylic Body with Engraved Scale

• Features
• Tie rod support, corrosion resistant, easy maintenance, rugged design

• Gas Pressure
• Up to 10 kg/cm2 (as per design)

• Hardness
• Acrylic Body (80-90 Shore D)

• Humidity
• Up to 85% RH (non-condensing)

• Interface Type
• Mechanical Interface

• Machine Weight
• 2.5 kg (approx.)

• Max Height
• 375 mm (for standard model)

• Measuring Range
• As per model, standard 100-60,000 LPH (for water)

• Mounting Type
• Flange Mounted (ANSI/DIN/BS available)

• Port Size
• 15 mm to 100 mm (As per order)

• Power Supply
• Not Required (Mechanical device)

• Resolution
• Graduated scale for direct reading

• Response Time
• Immediate (real time)

• Temperature
• Up to 60C

• Usage
• Industrial flow indication

• Equipment Type

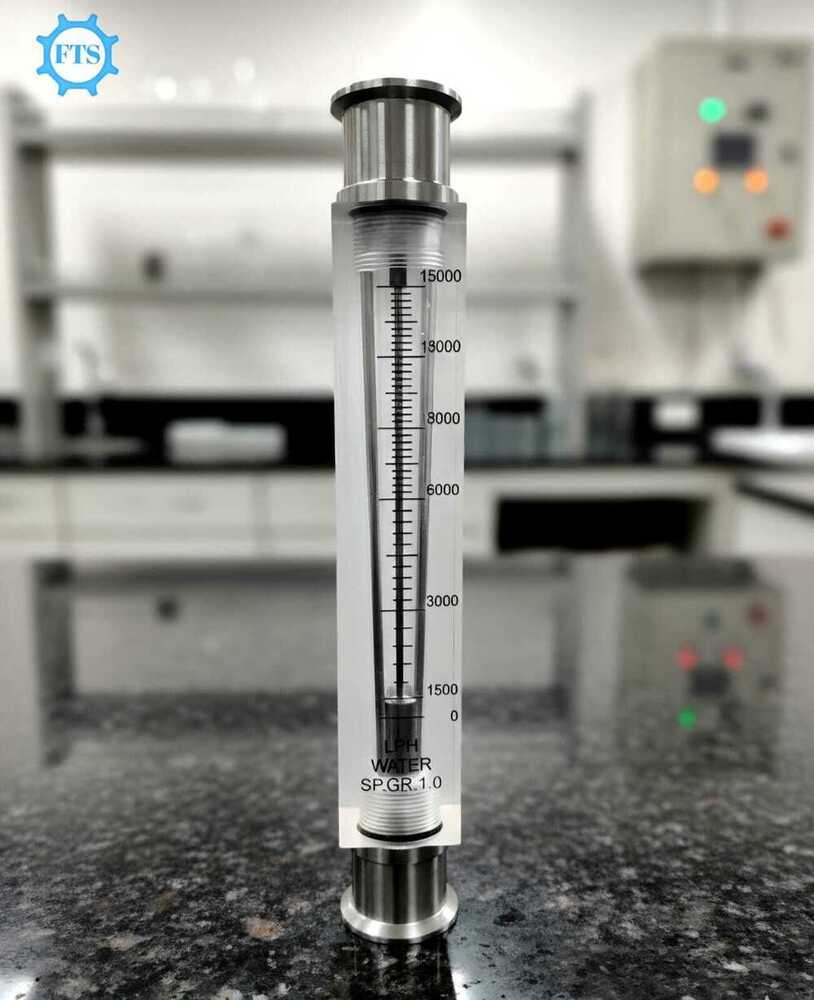

• Acrylic Body TC Type Rotameter

• Accuracy
• 2% FSD

• Application
• Industrial liquid and gas flow measurement

• Automation Grade
• Manual

• Capacity
• Varies as per range (up to 1000 LPH)

• Control Mode
• Manual

• Display Type
• Clear Acrylic Scale

• Features
• Corrosion-resistant, light-weight, easy to install and clean

• Gas Pressure
• Max. 10 kg/cm2

• Hardness
• Acrylic Body (Shore D: 80)

• Humidity
• 0-95% RH (Non-condensing)

• Interface Type
• Mechanical Only

• Machine Weight
• 1.2 kg (approx)

• Max Height
• 500 mm (varies by model)

• Measuring Range
• 15-5000 LPH (liquid) / 0.5-200 Nm3/hr (gas), customized options available

• Mounting Type
• Inline/Panel Mount

• Port Size
• 1/2 inch TC (Tri-Clamp)

• Power Supply
• Not Required (Mechanical Operation)

• Resolution
• Analog Scale with direct reading

• Response Time
• Instantaneous

• Temperature
• Up to 60C

• Usage
• Flow rate measurement

• Equipment Type
• Rotameter

• Accuracy
• 2% of Full Scale

• Application
• Measurement of liquid or gas flow in pipelines

• Automation Grade
• Manual/Analog

• Capacity
• 10 LPH to 6000 LPH (water) / 0.1 Nm3/hr to 60 Nm3/hr (air) depending on model

• Control Mode
• Manual

• Display Type
• Direct Reading Float Scale on Transparent Acrylic Body

• Features
• Corrosion-resistant, Transparent acrylic construction, Scale printed on body, Low Pressure Drop, Resistant to most chemicals

• Gas Pressure
• Up to 10 kg/cm2

• Humidity
• Up to 95% RH (Non-condensing)

• Interface Type
• Mechanical

• Machine Weight
• Approx. 800 g to 2 kg (varies with model)

• Max Height
• Approx. 250-350 mm (depends on model)

• Measuring Range
• Available on request (customizable per application), typical: 10-6000 LPH (water)

• Mounting Type
• Vertical (In-line)

• Port Size
• Available in 1/4, 1/2, 3/4, 1, 1.5, 2 BSP (F) sizes

• Power Supply
• Not Required (Mechanical device)

• Resolution
• Varies with scale, typically up to 0.1 LPH

• Response Time
• Instantaneous

• Temperature
• Max. 55C (Acrylic body temperature limit)

• Usage
• Flow indication and measurement for liquids and gases

• Equipment Type

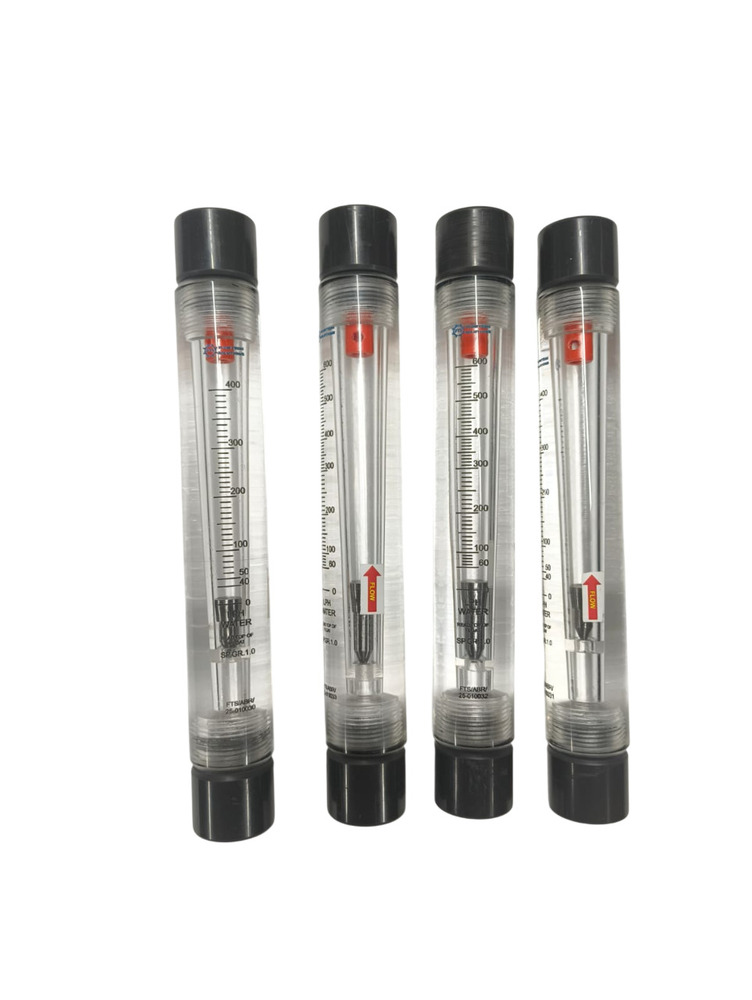

• Rotameter

• Accuracy
• 2% of F.S.R.

• Application
• Measurement of flow rate of liquids and gases in pipelines

• Automation Grade
• Manual

• Capacity
• 10 to 20,000 LPH (Standard models)

• Control Mode
• Manual

• Display Type
• Direct Reading Scale

• Features
• Corrosion-resistant, Lightweight, Transparent Acrylic Body, PVC Ends

• Gas Pressure
• Max 10 Kg/cm2

• Hardness
• Shore D 82-85 (Acrylic)

• Humidity
• Up to 95% RH (Non-condensing)

• Interface Type
• Mechanical Reading

• Machine Weight
• 1.2 kg approx.

• Max Height
• 300 mm (depends on model)

• Measuring Range
• As per model (customisable, e.g. 10-20,000 LPH)

• Mounting Type
• Vertical

• Port Size
• 1/2 inch BSP (Standard), other sizes available on request

• Power Supply
• Not Required (Mechanical Device)

• Resolution
• 0.1 LPH (depends on model)

• Response Time
• <5 seconds

• Temperature
• Max 60C

• Usage
• Industrial Fluid Measurement
